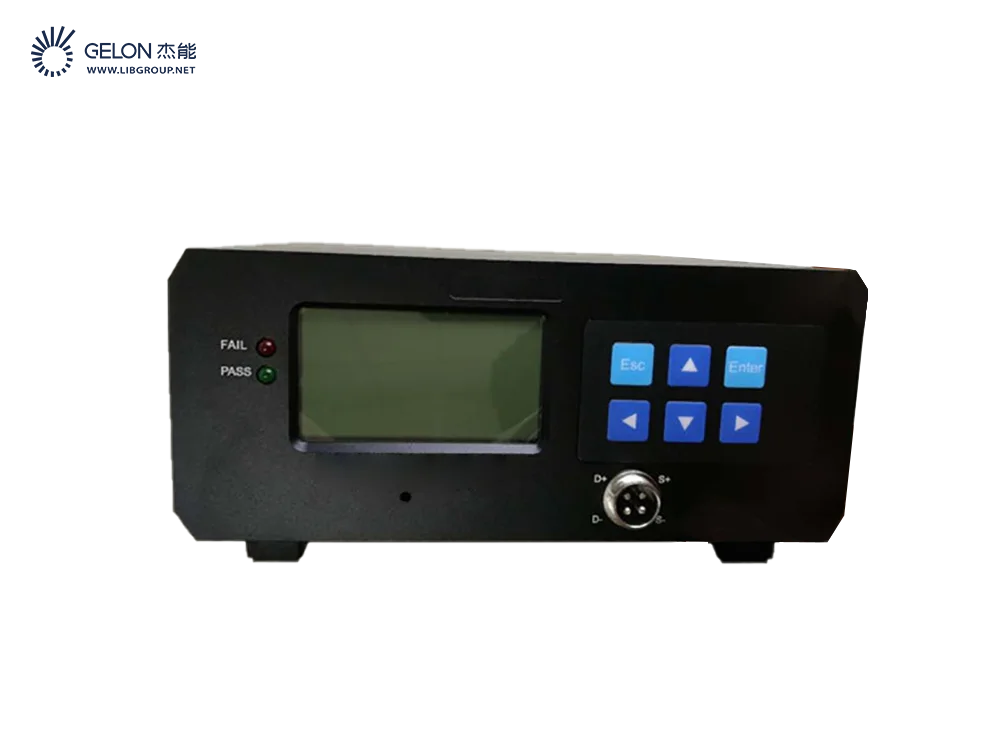

18650 Battery Test Machine Battery Internal Resistance Tester

Name: 18650 Battery Test Machine Battery Internal Resistance Tester
Brand: Gelon
Price: 750 USD

Brand Name : Gelon

Model Number : BTS100

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : $750USD/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100SET/MONTH

Delivery Time : 5-8DAYS

Packaging Details : STANDARD PACKAGE

Testing speed : 0.5seconds

Electric source : 220V±10% 50Hz

Consume power : max 50W

Tester size : L(190mm)*W(153mm)*H(90mm)

Net weight : 3kg

Product name : Battery Testing Machine

Contact Now

Product Application

Applied environment:
1) Temperature: 0~40℃
2) Height application: less than 2KM elevation
3) RH: 40~80%RH
Measurement range:
1)voltage measurement range:
0-5V minimum resolution:1mV
0-50V minimum resolution:10mV
2)internal resistance measurement range:
0-40mΩ minimum resolution:0.01mΩ
0-400mΩ minimum resolution:0.1mΩ
0-4000mΩ minimum resolution:

Testing speed	0.5seconds
Electric source	220V±10% 50Hz
Consume power	max 50W
Tester size	L(190mm)W(153mm)H(90mm)
Net weight	1.5kg
Gross weight	2kg

18650 Battery Test Machine Battery Internal Resistance Tester
